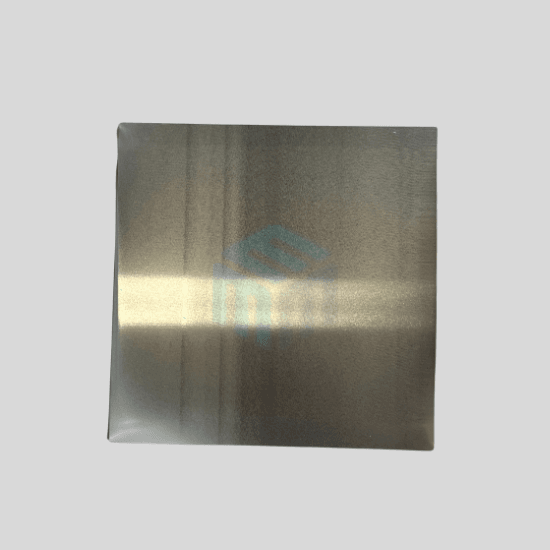

Titanium Sheet/Plate
Inquiry NowProduct Description
Titanium Sheets and Plates are lightweight, high-strength materials known for their excellent corrosion resistance, superior mechanical properties, and exceptional performance in extreme environments. Available in various grades, titanium sheets and plates are widely used in aerospace, marine, medical, and industrial applications. Their high strength-to-weight ratio and biocompatibility make them an ideal choice for demanding applications requiring durability and reliability.
Key Features
- High Strength-to-Weight Ratio – Stronger than steel but significantly lighter.
- Superior Corrosion Resistance – Excellent resistance to seawater, chemicals, and harsh environments.
- High-Temperature Stability – Maintains structural integrity at extreme temperatures.
- Exceptional Biocompatibility – Non-toxic and safe for medical implants and surgical applications.
- Excellent Machinability & Weldability – Can be fabricated into complex shapes with ease.
- Long Service Life – High durability ensures cost-effectiveness in demanding applications.
Technical Specifications
(Specifications may vary depending on grade and application requirements.)
| Property | Value (Typical Range) |
|---|---|
| Composition | Titanium (90-99%) with small amounts of Aluminum, Vanadium, Iron, etc. |
| Density | ~4.51 g/cm³ |
| Tensile Strength | 350 – 1,100 MPa (Depending on Grade) |
| Yield Strength | 250 – 900 MPa |
| Melting Point | ~1,668°C |
| Hardness | 160 – 400 HV |
| Thermal Conductivity | 15 – 22 W/m·K |
| Corrosion Resistance | Excellent in marine and chemical environments |
| Typical Specifications Available | Thickness (0.01 to 0.3 mm) x Width (≤ 400 mm) Thickness (0.3 to 4.0 mm) x Width (400 to 1000 mm) x Length (1000 to 3000 mm) Thickness (4.1 to 60 mm) x Width (400 to 1000 mm) x Length (1000 to 3000 mm) |
Applications
- Aerospace & Aviation – Used in aircraft structures, engine components, and spacecraft.
- Marine & Offshore Industry – Ideal for ship hulls, offshore platforms, and seawater pipelines.
- Medical & Healthcare – Applied in surgical implants, prosthetics, and medical instruments.
- Automotive & Motorsport – Used in high-performance car components and racing vehicles.
- Chemical & Power Plants – Essential for heat exchangers, pressure vessels, and reactors.
- Defense & Military – Utilized in armor plating, missile components, and submarines.
Why Choose Titanium Sheet/Plate from Mkube?
- High-Quality Material – Manufactured to meet international industry standards.
- Customizable Grades & Sizes – Available in different grades (Grade 1-5, etc.) and thicknesses.
- Exceptional Durability – Designed for long-term performance in extreme conditions.
- Precision Engineering – Ensures consistency and high-performance characteristics.
- Expert Technical Support – Assistance in selecting the right titanium grade for your application.
We, at M-Kube Enterprise, are an Australian company catering to:
– Premium quality laboratory equipment for analytical testing and sample preparation,
– Best in class laboratory consumables,
– Customized ceramic and refractory metal product solutions for high temperature applications and
– Top notch battery Equipment and battery consumables
We cater to various geographies like Australia, India, USA, Dubai, Indonesia, Malaysia, New Zealand, the Philippines, Singapore, South Korea, and Vietnam.
Our team of experts across different platforms can discuss and customize your requirements as per your needs. For more information, Please reach out to us on [email protected] or call us on +61478594746 to discuss your projects and we will be happy to explain the products in detail, tailor them to fit your requirements, and share detailed product catalogues.
We look forward to be one of your most trusted research partners.
