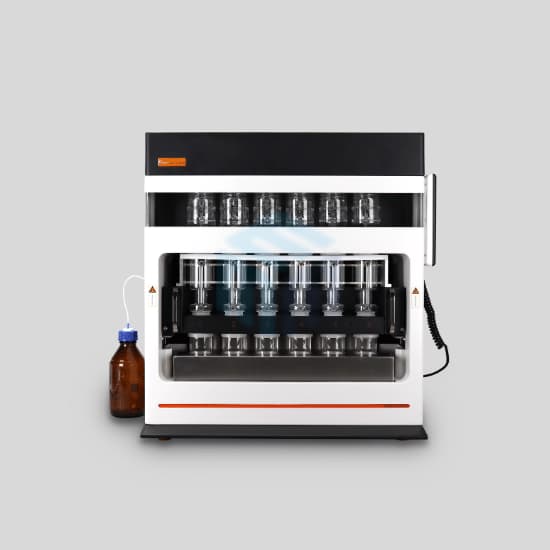

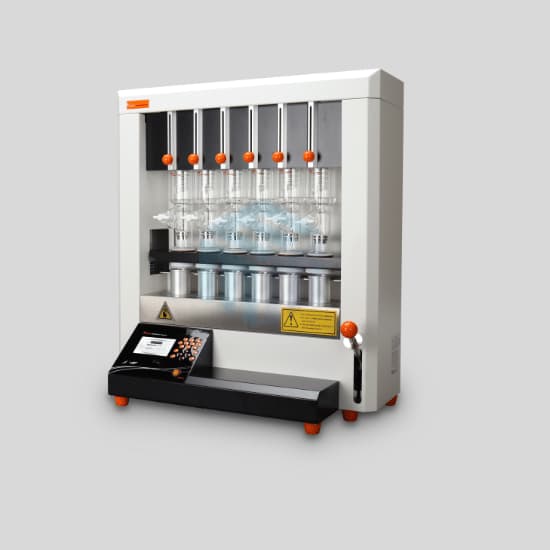

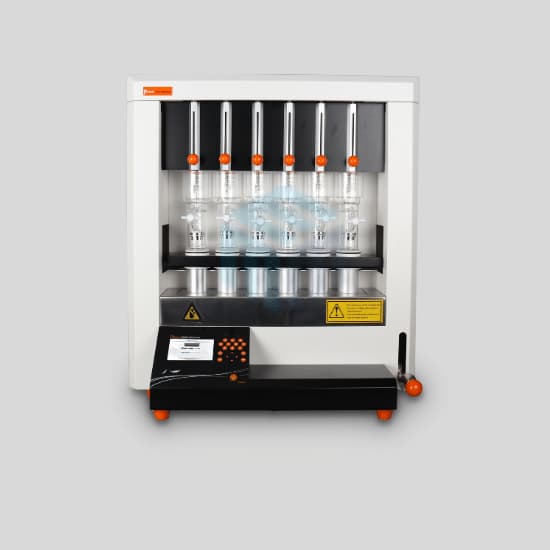

Automatic Soxhlet Extractor Fat Analyzer – Advanced Crude Fat Analysis System (SOX406 and SOX606 Models)

Product Description

M-Kube offers high-performance Automatic Soxhlet Extractor Fat Analyzers designed for accurate and efficient determination of fat content in food, feed, grain, agricultural, and laboratory samples. Based on the proven Soxhlet extraction method, these systems provide reliable crude fat analysis with improved automation, reduced solvent consumption, and enhanced operational safety.

Our Soxhlet extraction fat analyzers are ideal for laboratories requiring precise fat determination and consistent analytical performance across routine and research applications.

Key Features of Soxhlet Extraction Fat Analyzers

Advanced Automatic Soxhlet Extractor Fat Analyzer system
Accurate and repeatable crude fat analysis
Efficient solvent recovery and reduced solvent consumption
Simultaneous multi-sample testing for improved productivity
Integrated temperature control for stable extraction performance
User-friendly digital control system
Durable corrosion-resistant construction
Safer operation compared to traditional manual Soxhlet systems
Suitable for continuous laboratory operation

Typical Technical Specifications Fat Analyser

	SOX406 Fat Analyser	SOX606 Fat Analyser
Temperature range	Room temperature +5 ℃ ～ 280 ℃	Room temperature +5 ℃～ 300 ℃
Measuring range	0 ～ 100%	0.1 ～100%
Temperature accuracy	±1℃	±1 ℃
Sample weight	0.5 ～ 15 g(generally 2 ～ 5 g,depending on sample)	0.5 ～ 15 g
Process	Manual	Fully Automatic
Capacity per batch	6 pcs/ batch	6 pcs/ batch
Solvent cup volume	80 mL	150 mL
Solvent recovery	≥80%	≥85%
Shortened extraction time	20 ～ 80%
Controller		External via cable
Power supply	220VAC ± 10%, 50 Hz	220VAC ± 10%, 50Hz
Power	1 KW	2.6 KW
Dimensions	650 mm × 320 mm × 715 mm	650 mm × 380 mm × 720 mm
Net Weight	35 kg	50 kg

Applications of Soxhlet Extraction Equipment

Food Industry
Accurate fat content determination in processed foods, oils, and food ingredients.
Animal Feed Analysis
Reliable crude fat analyzer system for feed nutritional evaluation.
Agricultural Laboratories
Fat extraction and analysis in grains, seeds, and crop materials.
Research & Academic Laboratories
Soxhlet extraction equipment for analytical and educational applications.
Quality Control Laboratories
Routine fat testing for quality assurance and compliance.

Why Choose M-Kube

Reliable Soxhlet extraction apparatus solutions in Australia
Advanced automation for improved laboratory efficiency
Accurate and repeatable fat extraction results
Reduced solvent usage and enhanced operational safety
Technical support and dependable after-sales service

All M-Kube laboratory instruments are supplied from ISO-certified facilities and tested in accordance with relevant ASTM and international laboratory standards. This ensures reliable analytical performance, accuracy, and long-term operational consistency.
