Alumina Tubes, Alumina Pipes and Alumina Rods
Inquiry Now| Sr No | Product Code | Description | MOQ | Sell Price (in AUD) |
|---|---|---|---|---|
| 1 | Al-TbO-002-001-0100-00008 | Alumina Tube, Both Ends open, OD 2 mm , ID 1 mm , Length 100 mm | 5 | $27 |
| 2 | Al-TbO-005-003-0100-00028 | Alumina Tube, Both Ends open, OD 5 mm , ID 3 mm , Length 100 mm | 5 | $29 |
| 3 | Al-TbO-010-007-0100-00005 | Alumina Tube, Both Ends open, OD 10 mm , ID 7 mm , Length 100 mm | 5 | $27 |
| 4 | Al-TbO-020-015-0300-00014 | 99.7% Alumina Tube, Both Ends open, OD 20 mm, ID 15 mm, Length 300 mm | 2 | $99 |
| 5 | Al-TbO-040-020-1120-00003 | 76% Alumina Tube, Both Ends open, OD 40 mm , ID 20 mm , Length 1120mm | 1 | $320 |
| 6 | Al-TbO-050-040-0100-00011 | 99.7% Alumina Tube, Both Ends open, OD 50 mm , ID 40 mm , Length 100 mm | 2 | $115 |
| 7 | Al-TbO-050-040-0100-00016 | 99.7% Alumina Tube, Both Ends open, OD 50 mm , ID 40 mm , Length 200 mm | 1 | $170 |
| 8 | Al-TbO-050-040-1000-00002 | 99.7% Alumina Tube, Both Ends open, OD 50 mm , ID 40 mm , Length 1000 mm | 1 | $415 |
| 9 | Al-TbO-050-040-1000-00006 | 99.8% Alumina Tube, Both Ends open, OD 50 mm , ID 40 mm , Length 1000 mm | 1 | $510 |
| 10 | Al-TbO-060-050-1000-00001 | 99.7% Alumina Tube, Both Ends open, OD 60 mm , ID 50 mm , Length 1000 mm | 1 | $539 |
| 11 | Al-TbO-063-053-0568-00018 | 99.7% Alumina Tube, Both Ends open, OD 63 mm, ID 53 mm, Length 568 mm | 1 | $728 |
| 12 | Al-TbO-070-060-0500-0031 | 99.7% Alumina Tube, Both Ends open, OD 70 mm x ID 60 mm x L 500 mm | 1 | $789 |
| 13 | Al-TbO-080-000-1000-00022 | 99.7% Alumina Tube, Both Ends open, OD 80 mm x L 1000 mm | 1 | $889 |
| 14 | Al-TbO-080-000-1200-00023 | 99.7% Alumina Tube, Both Ends open, OD 80 mm x L 1200 mm, | 1 | CONTACT US |
| 15 | Al-TbO-080-000-1400-00024 | 99.7% Alumina Tube, Both Ends open, OD 80 mm x L 1400 mm, | 1 | CONTACT US |
| 16 | Al-TbO-100-000-1000-00025 | 99.7% Alumina Tube, Both Ends open, OD 100 mm x L 1000 mm | 1 | CONTACT US |
| 17 | Al-TbO-120-000-1000-00026 | 99.7% Alumina Tube, Both Ends open, OD 120 mm x L 1000 mm | 1 | CONTACT US |
| 18 | Al-TbO-150-000-1000-00027 | 99.7% Alumina Tube, Both Ends open, OD 150 mm x L 1000 mm | 1 | CONTACT US |
| 19 | CUSTOM REQUIREMENT | We can customize your requirements as per your needs Email [email protected] or Call on +61 478901616 | CONTACT US |
Product Description
General Description:
Material: Ceramic Alumina tubes and rods are ceramic products made from high-purity alumina (aluminium oxide) raw material (95% to 99.8% alumina content). This ensures excellent chemical resistance, high thermal conductivity, and good electrical insulation properties. Alumina tubes and rods are commonly used in high-temperature applications, corrosive environments, and as insulators in electrical systems.
Manufacturing Process: Alumina tubes and rods are typically produced through a process called extrusion or isostatic pressing. In the extrusion method, alumina powder mixed with binders is forced through a die to form the desired shape. Isostatic pressing involves compressing alumina powder in a flexible mold using fluid pressure to achieve the desired shape. Subsequently they can undergo precision machining up to a high degree of tolerance.

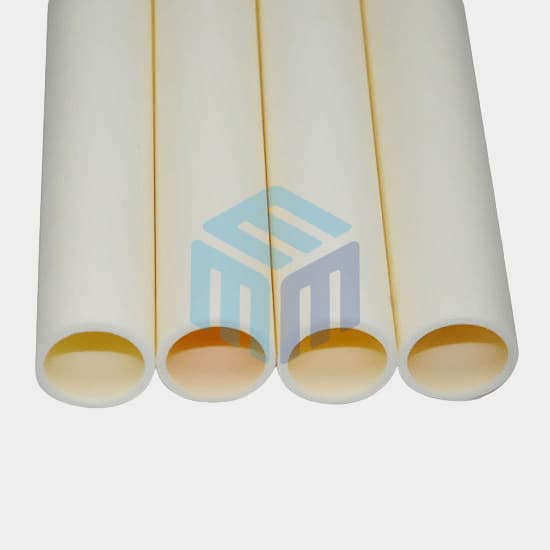

Dimensions: Alumina tubes are hollow cylindrical structures with varying inner and outer diameters, wall thicknesses, and lengths. Alumina rods, on the other hand, are solid cylindrical structures with uniform diameters and lengths.

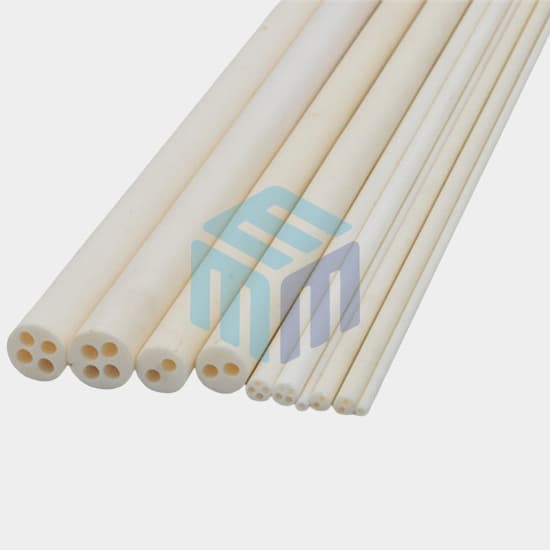

We can supply a wide range and different sizes (diameter, thickness and length) of Alumina tubes in a single bore, double bore, multiple bore, open/close ended and alumina rods for your specific requirements to suit a range of applications. We can also customise Alumina parts for high temperature applications according to size and specific design.
Alumina tubes and rods can be customized with features like flanges, grooves, or threads to suit specific application requirements.
It’s important to note that the specific properties and dimensions of alumina tubes and rods can vary based on the manufacturer and the intended application. Therefore, it’s advisable to consult the M-Kube team for detailed specifications and recommendations based on your specific needs.
M-Kube Enterprise is an Australian company catering customized laboratory products, laboratory consumables and laboratory solutions in Australia, Dubai, India, Indonesia, Malaysia, New Zealand, the Philippines, Singapore, South Korea, the USA, and Vietnam. We are a leading supplier of scientific laboratory equipment, specializing in high-purity alumina crucibles and alumina boat crucibles available in different sizes (diameter, thickness, and length) for chemistry and science laboratory applications. Our team of experts across different platforms can discuss and customize your requirements as per your needs.
Please reach out to us on [email protected] or call us on +61 478901616 to discuss your projects.
Properties:
Alumina tubes and rods possess several desirable properties, including:
- High mechanical strength
- Excellent hardness
- High melting point (over 2000°C)
- Good thermal shock resistance
- Resistant to many chemicals and have
- Low thermal expansion coefficients
- Low dielectric loss and excellent electric insulation property
Applications:
Alumina tubes and rods find applications in diverse industries, such as:
- High-temperature furnaces: Alumina tubes and rods are used as protective and insulating components in kilns, furnaces, and heaters due to their ability to withstand extreme temperatures up to 1700 Deg C.
- Thermocouple protection tubes: They are utilized to protect and guide temperature-sensing elements in thermocouples, which are commonly used for temperature measurement in various industrial processes.
- Semiconductor manufacturing: Alumina tubes and rods are employed in the production of semiconductors as vacuum feedthroughs, insulating parts, and wafer handling components.
- Chemical processing: Their excellent chemical resistance makes them suitable for handling corrosive chemicals and acids in chemical processing plants.
- Electrical insulation: Alumina tubes and rods serve as electrical insulators in high-voltage systems, electrical heaters, and other electrical applications due to their high dielectric strength.
- Multiple other research based applications
