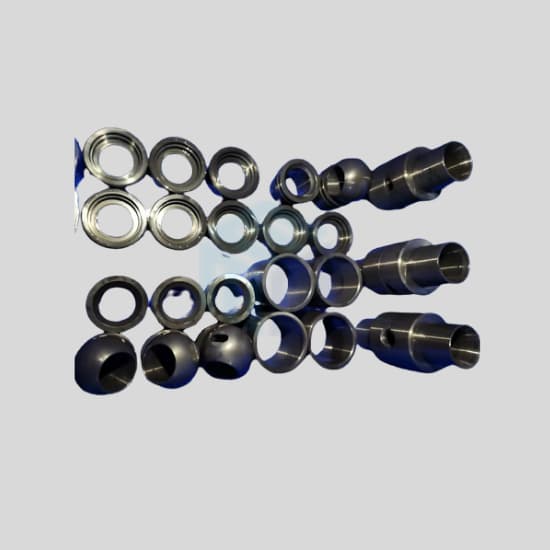

Silicon Nitride Rings

Product Description

Silicon nitride (Si₃N₄) rings are precision-engineered components made from silicon nitride, a high-performance ceramic material known for its exceptional mechanical, thermal, and chemical properties. These rings are commonly used in demanding environments requiring durability, low friction, and resistance to extreme temperatures and corrosive substances.

Manufacturing Process (Simplified Overview)

1. Raw Material Preparation
   • Fine silicon nitride (Si₃N₄) powder is mixed with binders and additives to enhance formability and strength.
2. Shaping/Forming
   • Isostatic Pressing: Powder is compacted under high pressure uniformly to create a dense preform.
   • Injection Molding: For complex shapes, a mold is used to form the ring.
   • Cold or Hot Pressing: Used for simple geometries with high precision.
3. Sintering (Densification Process)
   • The formed part is heated in a controlled nitrogen atmosphere at temperatures between 1600°C and 1800°C.
   • Pressure-assisted sintering (Hot Isostatic Pressing) further increases density and mechanical strength.
4. Machining & Grinding
   • After sintering, the ring is precisely machined using diamond grinding due to the extreme hardness of silicon nitride.
   • This step ensures tight tolerances, smooth surfaces, and specific dimensions.
5. Polishing & Surface Treatment (If Required)
   • For applications like bearings, rings are polished to a fine surface finish (0.01 – 0.1 µm Ra).
   • Additional coatings (if needed) can enhance corrosion or thermal resistance.
6. Inspection & Quality Control
   • Each ring undergoes strict quality checks:
     • Dimensional accuracy (using CMM machines)
     • Density and porosity inspection
     • Strength and thermal shock resistance tests

Key Properties of Silicon Nitride Rings:

• High Hardness and Wear Resistance: Excellent durability under high mechanical loads.
• Thermal Stability: Withstands temperatures up to 1200°C (2192°F) without degrading.
• Corrosion Resistance: Resists oxidation and chemical attacks from acids and alkalis.
• Low Density: Lighter than metals like steel, reducing the overall weight of machinery.
• Low Thermal Expansion: Maintains structural integrity across temperature fluctuations.
• Electrical Insulation: Acts as a non-conductive material, ideal for electrical applications.

Typical Specifications of Silicon Nitride Rings

• Material Grade: Si₃N₄ (Hot-pressed, Reaction-bonded, or Sintered Silicon Nitride).

• Outer Diameter (OD): Ranges from 5 mm to 300 mm (custom sizes available).
• Inner Diameter (ID): Typically between 2 mm and 250 mm.
• Thickness: 0.5 mm to 50 mm, depending on the application.
• Surface Finish: Polished (0.01 – 0.1 µm Ra) for low-friction applications.
• Mechanical Strength: Flexural Strength: 600–1000 MPa.
• Thermal Properties: Operating Temperature: Up to 1200°C.
• Density: 3.2 – 3.3 g/cm³.

Uses of Silicon Nitride Rings

1. Bearings and Rolling Elements: Used in high-speed and precision ball bearings due to low friction and thermal resistance.
2. Semiconductor Manufacturing: Employed in wafer processing due to their chemical inertness and precision.
3. Automotive Industry: Found in turbocharger rotors, engine components, and wear-resistant parts.
4. Aerospace Industry: Used in jet engines and turbine components for their lightweight and heat resistance.
5. Medical Devices: Applied in surgical tools and implants for biocompatibility and wear resistance.
6. Chemical Processing Equipment: Ideal for pumps and seals handling aggressive chemicals.

Industries with High Silicon Nitride Ring Consumption

• Aerospace & Defense: High-performance engines and aircraft systems.
• Automotive: High-efficiency engines and electric vehicle components.
• Semiconductor: Wafer handling and etching systems.
• Energy (Oil & Gas): High-pressure, corrosive environments.
• Medical: Advanced surgical and diagnostic equipment.
